LPA180

The LPA180 industrial robotic arm is a high-precision, 6-axis manipulator designed for flexible automation in assembly, welding, and material handling. With 180kg payload capacity and ±0.05mm repeatability, it excels in automotive, electronics, and heavy manufacturing while supporting IoT integration for smart factory applications.

Classification :

Robot Products

Keywords:

LPA180

+86 188 1532 1055

liu3218@sina.com

E-mail

PRODUCT DETAILS

The LPA180 robotic arm redefines heavy-load automation with its 180kg payload capacity and ±0.03mm repeatability, engineered for automotive forging, metal casting, and construction material handling. Featuring IP67-rated protection and 24/7 continuous operation capability, this Japan-engineered robot delivers unmatched reliability in high-temperature (0–55°C) and dusty environments.

Powered by proprietary SmartMotion AI, the LPA180 achieves 15% faster cycle times than industrial benchmarks through adaptive path-planning algorithms. Its modular design supports seamless integration with IoT platforms (OPC UA/EtherCAT protocols) for real-time production analytics and predictive maintenance.

Product Parameters

Projects			specification
Robot model			LPA180-01
structure			Articular
degree of freedom			4
Drive mode			AC servo mode
Maximum range of motion	Arms	Axis 1	±3.14rad
		Axis 2	+0.79~-1.66rad
		Axis 3	+0.31～-2.05rad
	wrists	Axis 4	±6.28rad
Maximum Speed*	Arms	Axis 1	2.44rad/s
		Axis 2	2.18rad/s
		Axis 3	2.27rad/s
	wrists	Axis 4	6.98rad/s
Maximum transportable mass	wrists	maximum	180kg
		rated	130kg
	1st arm2*		Up to 25kg
The wrist allows the maximum moment of inertia		Axis 4	69kgm²
Repeatability accuracy3*			±0.4mm
Use air pressure			-101.3～~690 kPa
Air piping			4-F12×8
Apply the signal line			40 cores (to wrist)
How to set it up			Ground mounted
Set the conditions			Ambient temperature: 0~45°C4
			Ambient humidity: 20~85%RH (no condensation)
			Allowable vibration value of installation surface: 0.5G (4.9m/s2) or less
Body mass			1,150kg

*1 [rad] = 180 / π [°], 1 [N·m] = 1/9.8 [kgf·m]
* The rated power, specifications, and external dimensions of this product are subject to change without notice.
*Axes 1~4 correspond to J1~J4 in the teach pendant screen in order.
*It does not have an explosion-proof function.
*1: Only if the wrist load is 130 kg or less.
*2: Varies depending on the installation site and the quality of the wrist load.
*3: Based on JS B8432 standard.
*4: Use below 1,000m above sea level.
When the allowable height is exceeded, the ambient temperature will be limited.

We have provided over 4500 sets of solutions and equipment for industries such as feed, grain and oil, food, chemical, pharmaceutical, and mechanical processing;

PRODUCT DETAILS

Product Parameters

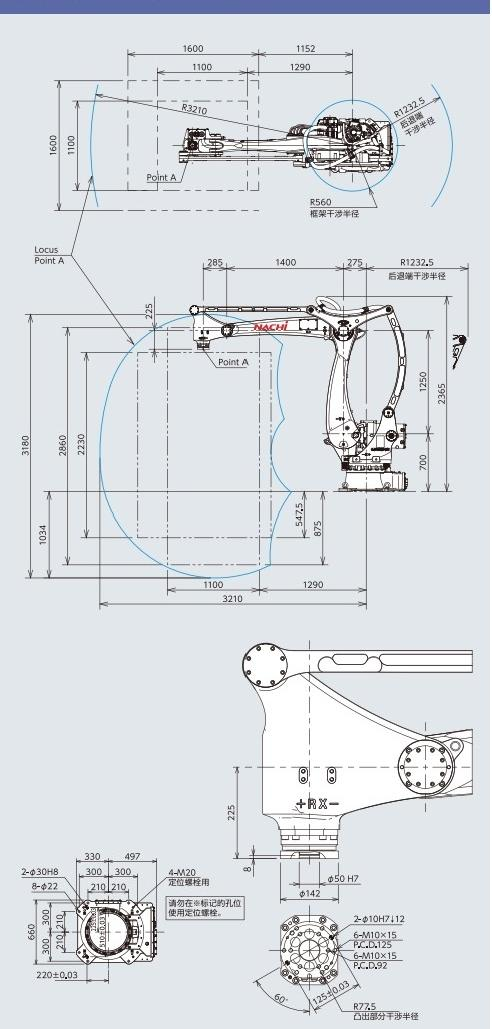

Dimensions and range of action
